The HYD-CNC1200SX is an ultra-heavy-duty dual-roller CNC spinning center designed specifically for massive industrial and aerospace components. Boasting a colossal 12,000 KG highly rigid machine bed and a formidable 50kW main motor, it delivers unparalleled forming power and unmatched stability under extreme loads.
Core Advantages:
Extreme Processing Capacity: Easily accommodates oversized blanks up to 1200mm in diameter. It powers through heavy-duty materials, spinning aluminum up to 10mm thick and stainless steel up to 4.5mm thick with precision.
Advanced 6+6 Tooling & Dual Tailstock: Equipped with an innovative 6+6 roller configuration and a 600mm dual tailstock system (35KN max force), ensuring superior balance, versatile multi-pass forming, and strict tolerances for complex geometries.
High-Thrust Servo Drive: The X and Z axes deliver massive thrust (up to 150KN on the Z-axis) combined with rapid moving speeds, significantly boosting production efficiency for large-scale energy, ventilation, and automotive parts.
| Specifications |
Unit |
Model: HYD-CNC1200SX |
| Max. Swing Over Carriage |
mm |
720 |
| Max. Blank Diameter |
mm |
1200 |
| Distance Between Centers |
mm |
1200 |
| Main Motor Power |
kW |
50 |
| X/X1 Axis Travel |
mm |
600 / 600 (Single Side) |
| X/X1 Axis Max. Thrust |
KN |
100 / 100 |
| X/X1 Axis Max. Moving Speed |
mm/min |
3000 / 3000 |
| Z Axis Travel |
mm |
800 |
| Z Axis Max. Thrust |
KN |
150 |
| Z Axis Max. Moving Speed |
mm/min |
4000 |
| Spindle Speed |
rpm |
50 - 1500 |
| Max. Tailstock Force |
KN |
35 |
| Tailstock Travel |
mm |
600 (Dual Tailstock) |
| Number of Tools (Rollers) |
pcs |
6 + 6 |
| Max. Processing Thickness (Aluminum) |
mm |
0.5 - 10 |
| Max. Processing Thickness (Mild Steel) |
mm |
0.5 - 6 |
| Max. Processing Thickness (Stainless Steel) |
mm |
0.5 - 4.5 |
| Overall Dimensions (L×W×H) |
mm |
5200 × 2900 × 2400 |
| Spindle Flange Connection |
GB |
A2-11 |
| Machine Weight |
KG |
12000 |
Main Features of the Machine

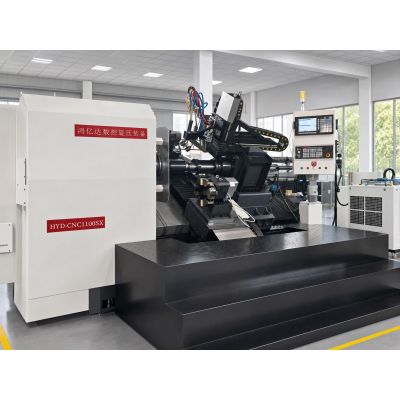

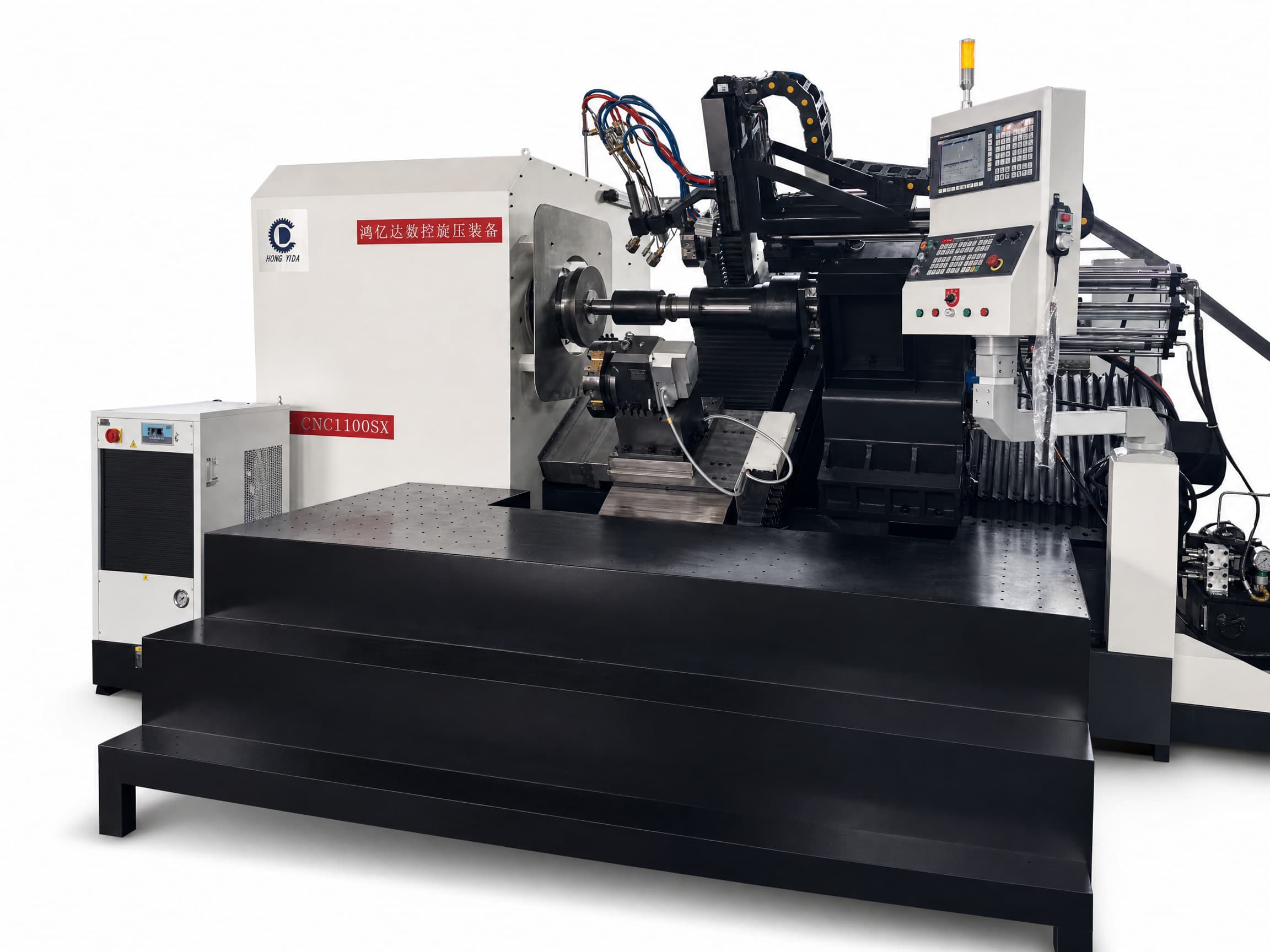

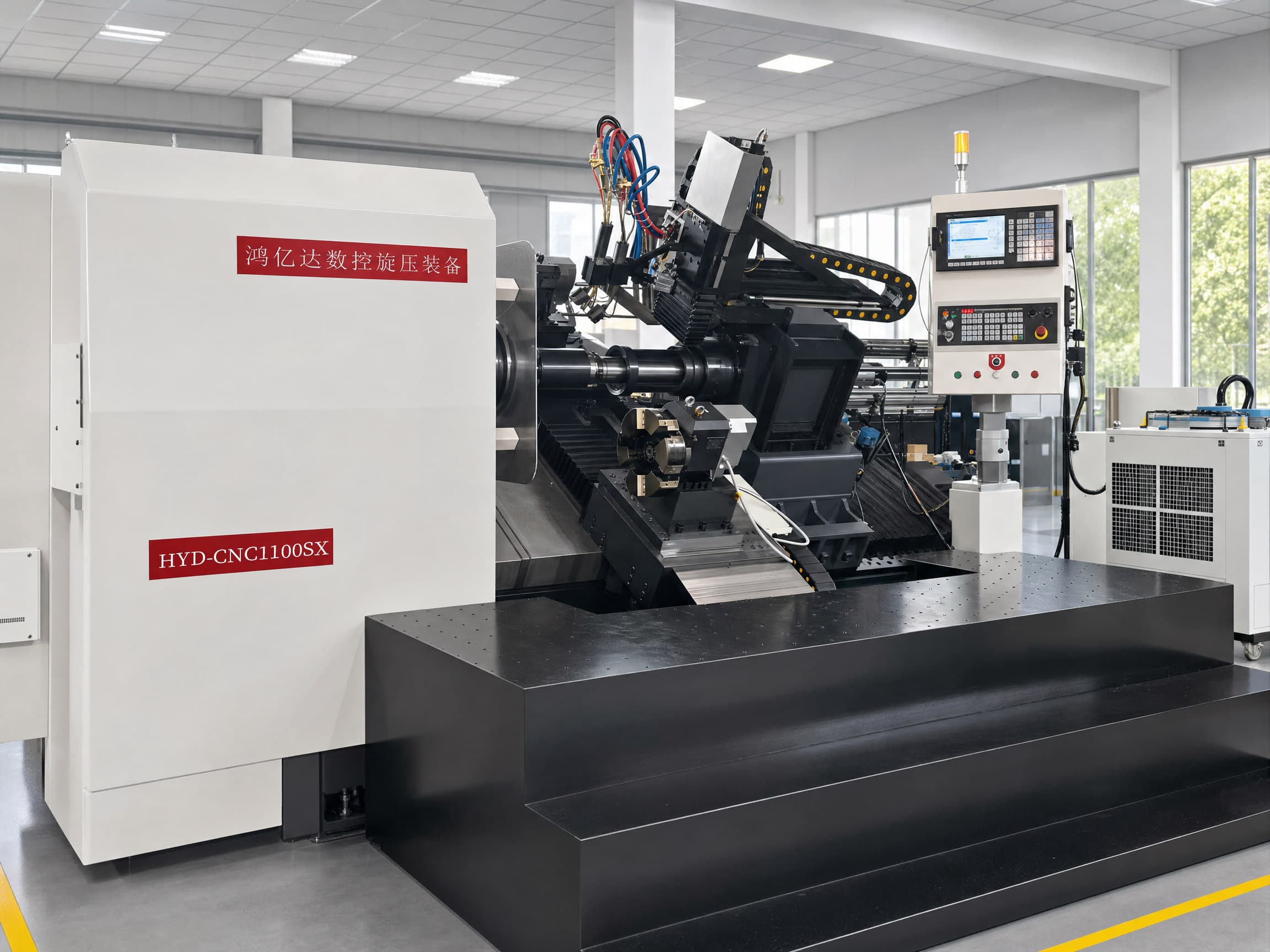

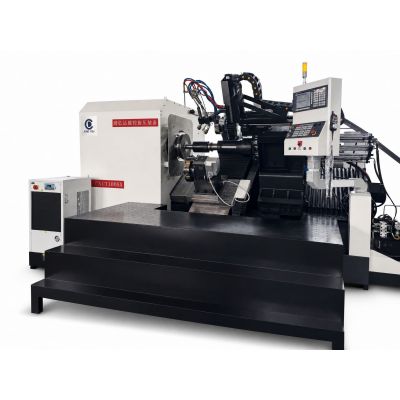

Robust & Optimized Design: The HYD-CNC- 1100SX CNC heavy-duty spinning center is a powerful and versatile machine featuring a highly rigid structure and superior manufacturing precision. Its mechanical framework utilizes a 3D overall design, with the main body constructed from high-strength castings. It offers a compact and rational layout while optimizing the spinning force. The sliding table and system design adopt a 90-degree configuration. Both the digital control system and motion drives are powered by the GSK (Guangzhou CNC) platform, delivering high performance and exceptional stability.
Superior Craftsmanship: As a highly stable metal spinning processing center, the HYD-CNC- 1100SX offers extensive processing capabilities. Employing advanced 3D mechanical design and high-strength castings, it ensures structural compactness alongside optimized spinning force distribution.
Versatile Forming Capabilities: Adopting a horizontal dual-roller structure, the machine can process blanks up to Φ 00mm. It is capable of both conventional spinning and shear spinning for materials including aluminum, copper, steel, and other non-ferrous metals. It excels at forming curved, conical, hemispherical, bullet-shaped, variable-wall-thickness complex surfaces, and special-shaped parts with abrupt structural changes. It can complete spinning, trimming, flanging, rolling, and shaping processes in a single setup, and also includes a mandrel turning/repair function.
Advanced Servo Control System: Controlled by a fully digital servo system, the machine offers intuitive programming and strong applicability. Equipped with the GSK control system, it features fully automatic lubrication, automatic fault diagnosis, and overload protection. It achieves multi-axis linkage, supporting two-axis linear interpolation and circular interpolation. Both longitudinal and transverse movements are driven by servo motors equipped with photoelectric encoders, which feed position and speed detection signals back to the control system to ensure highly precise positioning.
Comprehensive Software Suite: The machine is fully equipped with the necessary programming software, including the exclusive HONGYDA proprietary toolpath editing software, AutoCAD for mandrel and toolpath drafting, and CIMCO Edit 4 for spinning path simulation.
