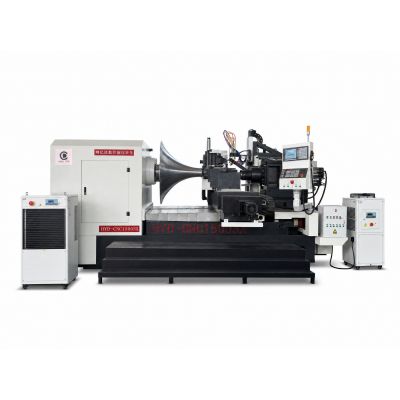

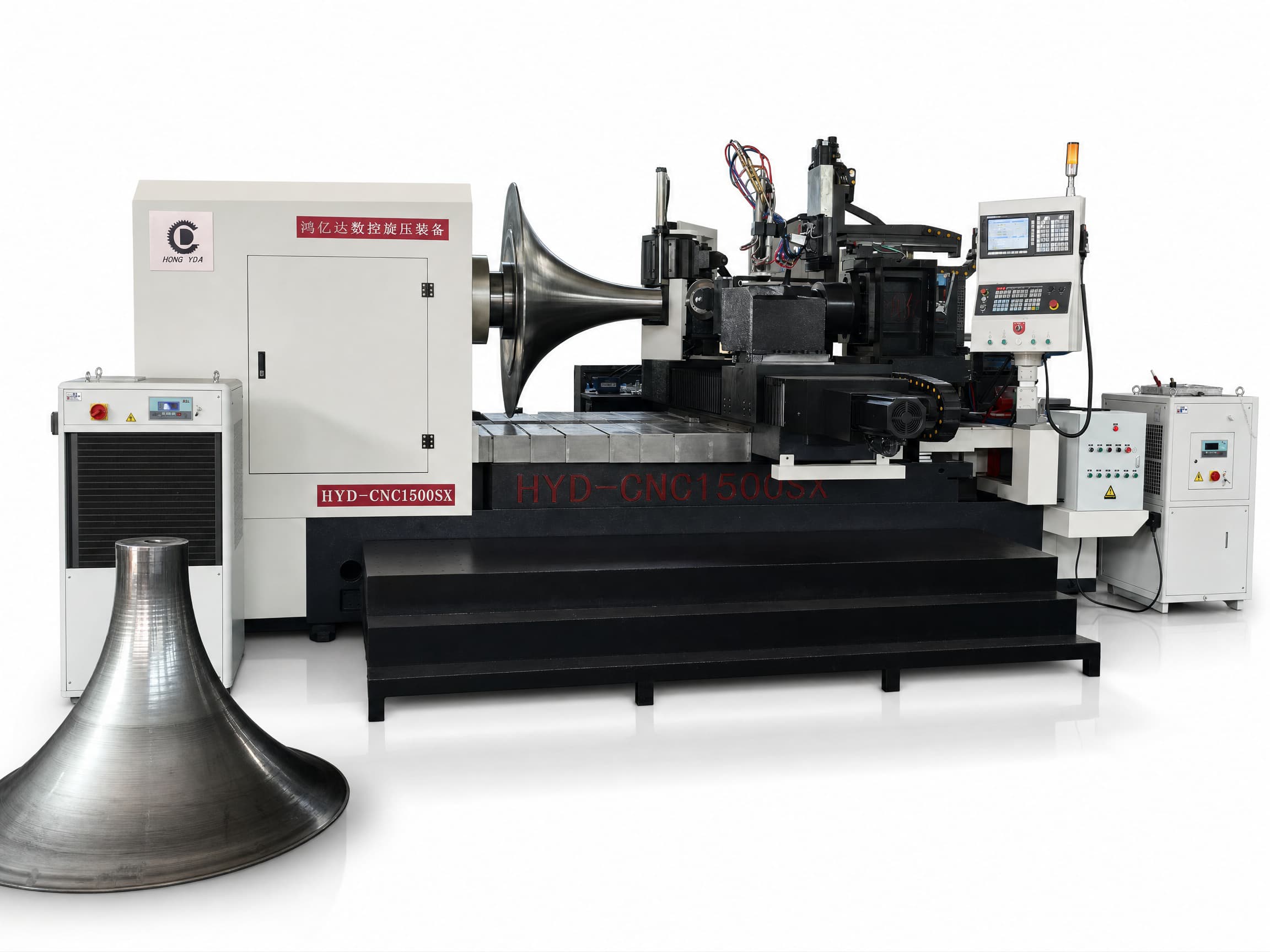

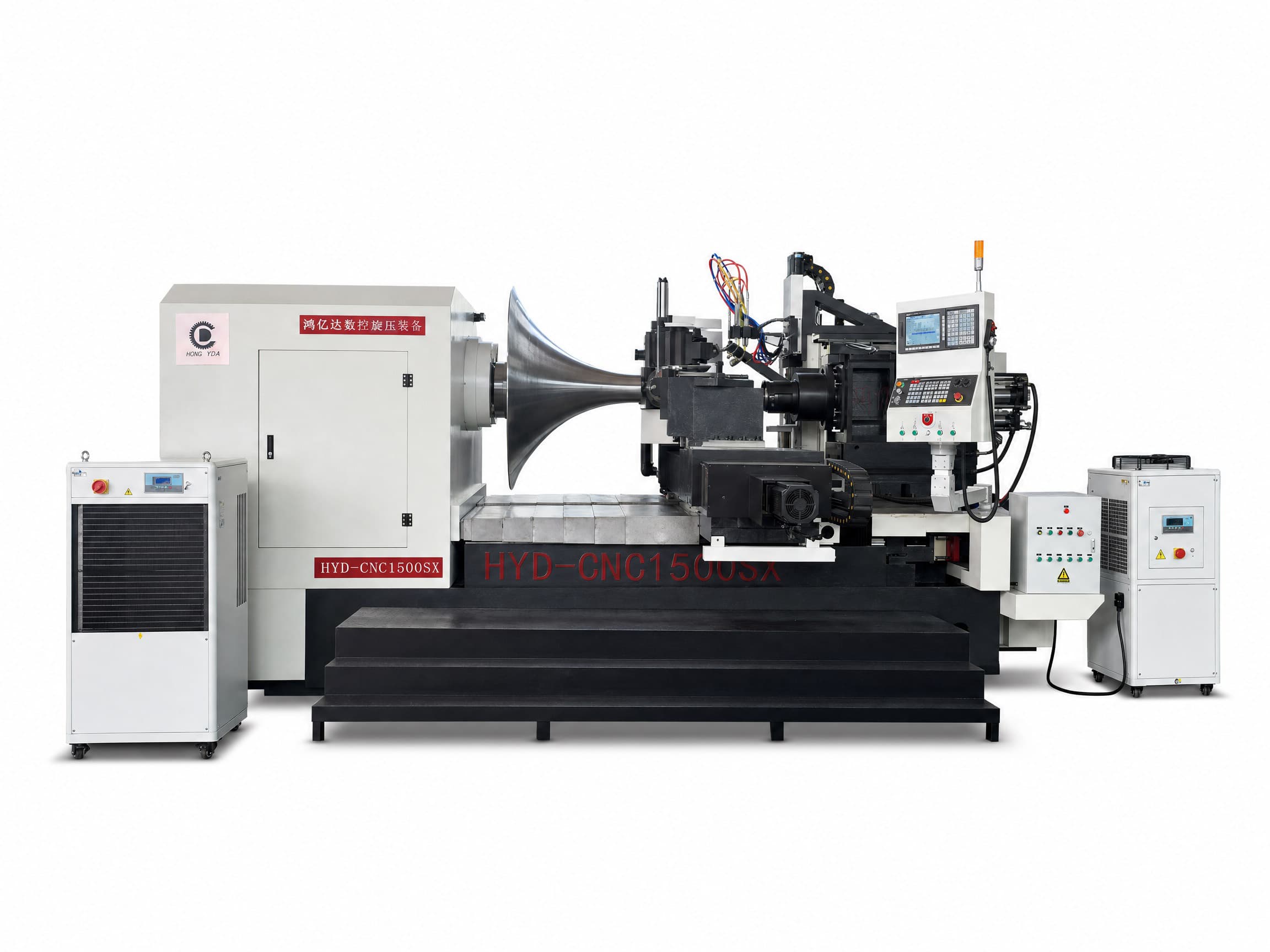

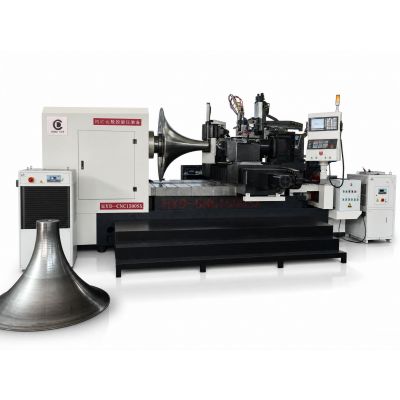

The HYD-CNC1500SX is a flagship ultra-heavy-duty CNC metal spinning machine engineered for the most demanding large-scale industrial and aerospace applications. Anchored by a massive 23,000 KG high-rigidity machine bed and driven by a robust 75kW (6-pole) main motor, it offers absolute stability and formidable power during heavy material forming.

Core Advantages:

Unmatched Forming Power: Capable of handling oversized blanks up to 1500mm in diameter. With an astounding 300KN of thrust on both the X and Z axes, it effortlessly spin-forges stainless steel up to 8mm and aluminum up to 14mm thick.

Advanced Drive & Tooling: Features a dual variable speed spindle (up to 1500 rpm) to optimize torque across different diameters. The specialized 1+4 roller configuration and heavy-duty 55KN tailstock ensure ultimate precision and flawless surface finishes on complex, large-volume components.

Industry-Leading Applications: The ultimate solution for manufacturing large chemical vessel tank heads, aerospace engine cowlings, heavy industrial ventilation cones, and oversized energy sector parts.

Main Features of the Machine

Robust & Optimized Design: The HYD-CNC-1500SX CNC heavy-duty spinning center is a powerful and versatile machine featuring a highly rigid structure and superior manufacturing precision. Its mechanical framework utilizes a 3D overall design, with the main body constructed from high-strength castings. It offers a compact and rational layout while optimizing the spinning force. The sliding table and system design adopt a 90-degree configuration. Both the digital control system and motion drives are powered by the GSK (Guangzhou CNC) platform, delivering high performance and exceptional stability.

Superior Craftsmanship: As a highly stable metal spinning processing center, the HYD-CNC-1500SX offers extensive processing capabilities. Employing advanced 3D mechanical design and high-strength castings, it ensures structural compactness alongside optimized spinning force distribution.

Versatile Forming Capabilities: Adopting a horizontal dual-roller structure, the machine can process blanks up to Φ 00mm. It is capable of both conventional spinning and shear spinning for materials including aluminum, copper, steel, and other non-ferrous metals. It excels at forming curved, conical, hemispherical, bullet-shaped, variable-wall-thickness complex surfaces, and special-shaped parts with abrupt structural changes. It can complete spinning, trimming, flanging, rolling, and shaping processes in a single setup, and also includes a mandrel turning/repair function.

Advanced Servo Control System: Controlled by a fully digital servo system, the machine offers intuitive programming and strong applicability. Equipped with the GSK control system, it features fully automatic lubrication, automatic fault diagnosis, and overload protection. It achieves multi-axis linkage, supporting two-axis linear interpolation and circular interpolation. Both longitudinal and transverse movements are driven by servo motors equipped with photoelectric encoders, which feed position and speed detection signals back to the control system to ensure highly precise positioning.

Comprehensive Software Suite: The machine is fully equipped with the necessary programming software, including the exclusive HONGYDA proprietary toolpath editing software, AutoCAD for mandrel and toolpath drafting, and CIMCO Edit 4 for spinning path simulation.
